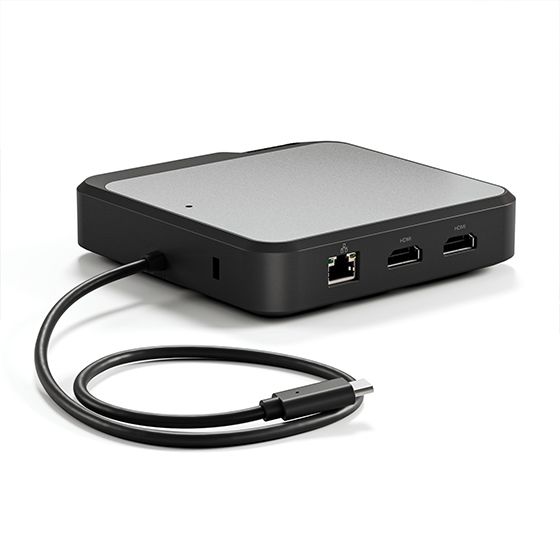

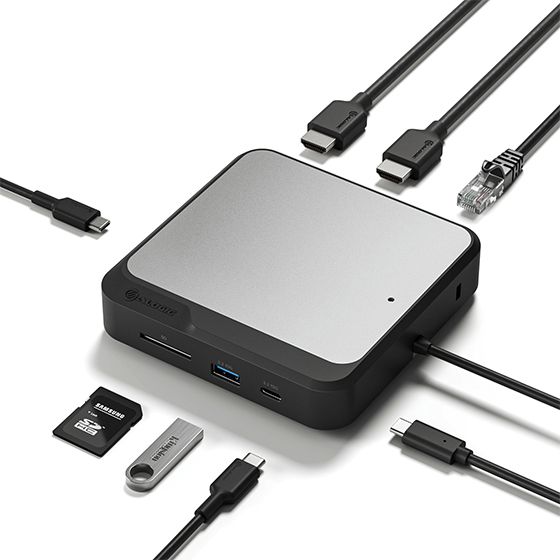

ALOGIC’s Dual 4K Universal Compact Docking Station’s twin HDMI outputs enable you to connect two external displays at resolutions up to 4K.
The dock’s inbuilt DisplayLink technology ensures you experience the highest-possible screen resolutions for your computer monitor, regardless of your computer model, or whether you connect to USB-A or USB-C ports.

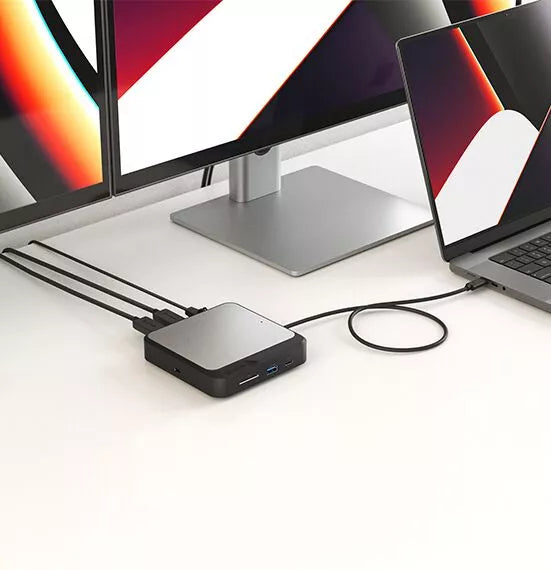

When you expand your screen real estate with the CH2, you have better oversight of your work. This oversight can improve your efficiency and productivity.
General
What resolutions and how many screens does this support?
This dock can connect you to up to 2 x 4K UHD screens at 60Hz (2x 4096x2160 at 60Hz maximum).
Does this require an external power adapter? How fast can it charge my laptop?
The DUCD2 can be directly powered from your computer, however, with a 100W USB-C PD power adapter connected (sold separately), the DUCD2 can supply up to 78W of power to recharge your laptop.
The dock's USB-C data port will also be disabled when not connected to external power.
The dock's USB-C data port will also be disabled when not connected to external power.
Does the CH2 require any additional software installation?
The CH2 uses the DisplayLink chipset and requires the DisplayLink software to be installed
on the connected laptops. DisplayLink software is free to download via - https://www.synaptics.com/products/displaylink-graphics/downloads
What are the requirements to achieve 4K displays with the CH2 dock?
To achieve 4K displays, the CH2 will need to be connected to a 4K monitor and have adequate display cables rated for 4K resolutions.
Using the USB-C connection will provide better display options compared to the older USB-A connection.
Using the USB-C connection will provide better display options compared to the older USB-A connection.
Compatibility
Does the CH2 support MacBooks, Windows & Chromebook laptops?
The CH2 can support MacBooks (even M1 MacBooks), Windows & Chromebook laptops.
The USB-C cable that comes with the CH2 also has a USB-A adapter so this dock can be used on older generation laptops.
The USB-C cable that comes with the CH2 also has a USB-A adapter so this dock can be used on older generation laptops.
What sort of Video cables are compatible with the CH2 dock?
he CD2 has two HDMI output connections for connected display monitors.
We recommend using direct HDMI to HDMI cables from the dock to the monitor where possible.
We recommend using direct HDMI to HDMI cables from the dock to the monitor where possible.
I have Thunderbolt 3 & or 4 ports on my laptop – will this be compatible with the CH2 dock?
Thunderbolt 3 & 4 ports use the same connector as USB-C. Hence, the CH2 is compatible with laptops that have Thunderbolt 3 or 4 ports however it won't be able to achieve Thunderbolt data transfer rates.
Troubleshooting
Display Link & Intel Arc Graphics Driver Conflict Causing Windows To Crash
(Display Link) Intel® Graphics Driver 31.0.101.3490 for Intel® Arc™ A-Series Graphics DCH Driver Conflict Causing Windows To Crash
We have identified that the above version of Intel Display Drivers (Arc) conflicts with the current version of Display Link Software leading to windows becoming non-responsive and eventually a complete system crash.
This download installs the Intel Graphics Driver for Intel Arc A-Series Graphics. The driver provides support for Intel discrete graphics cards such as Arc A380, A770M, A550M, A730M, A370M and A350M Graphics (codenamed Alchemist).
In addition, the 12th generation Intel Core processors with integrated Iris Xe graphics and UHD graphics (codename Alder Lake-H, Alder Lake-P) are supported. (Technically all latest OEM Laptops with intel Graphics)
Reason:
The Intel ARC Graphics Driver is the latest driver release for the Windows OS. Installing this Intel generic graphics driver will overwrite your computer manufacturer (OEM) customized driver.
OEM drivers are handpicked and include customized features and solutions to platform-specific issues. The generic Intel driver provides users the latest and greatest feature enhancements and bug fixes that OEMs may not have customized yet to address platform-specific needs.
Solution:
Users facing this issue should uninstall the Arc versions & revert to OEM versions of Video Drivers from the OEM support websites.
Corporate customers should always use OEM drivers and report all issues to Corporate IT Teams through the vendor they purchased the platforms and support.
Intel Arc & Display Link
We have identified that the above version of Intel Display Drivers (Arc) conflicts with the current version of Display Link Software leading to windows becoming non-responsive and eventually a complete system crash.
This download installs the Intel Graphics Driver for Intel Arc A-Series Graphics. The driver provides support for Intel discrete graphics cards such as Arc A380, A770M, A550M, A730M, A370M and A350M Graphics (codenamed Alchemist).
In addition, the 12th generation Intel Core processors with integrated Iris Xe graphics and UHD graphics (codename Alder Lake-H, Alder Lake-P) are supported. (Technically all latest OEM Laptops with intel Graphics)
Reason:
The Intel ARC Graphics Driver is the latest driver release for the Windows OS. Installing this Intel generic graphics driver will overwrite your computer manufacturer (OEM) customized driver.
OEM drivers are handpicked and include customized features and solutions to platform-specific issues. The generic Intel driver provides users the latest and greatest feature enhancements and bug fixes that OEMs may not have customized yet to address platform-specific needs.
Solution:
Users facing this issue should uninstall the Arc versions & revert to OEM versions of Video Drivers from the OEM support websites.
Corporate customers should always use OEM drivers and report all issues to Corporate IT Teams through the vendor they purchased the platforms and support.
Intel Arc & Display Link
Installing DisplayLink Drivers on MacOS Version 12 (Monterey)
This information applies to Apple computers running MacOS version 12 (Monterey).
Docking stations which use DisplayLink technology require software installed on the computer connected to them to function correctly.
Always ensure you have installed the latest DisplayLink software for your machine from the DisplayLink website at:
https://www.displaylink.com/downloads
In addition to installing the DisplayLink software, MacOS Version 11 requires permissions being granted to the software for it to work correctly. These permissions allow the operating system to send video to the docking station to display on external monitors and do not pose any form of security risk.
The following is the process to correctly install and configure the DisplayLink software.
The steps required you will find in the attached PDF here (Click Here)
Docking stations which use DisplayLink technology require software installed on the computer connected to them to function correctly.
Always ensure you have installed the latest DisplayLink software for your machine from the DisplayLink website at:
https://www.displaylink.com/downloads
In addition to installing the DisplayLink software, MacOS Version 11 requires permissions being granted to the software for it to work correctly. These permissions allow the operating system to send video to the docking station to display on external monitors and do not pose any form of security risk.
The following is the process to correctly install and configure the DisplayLink software.
The steps required you will find in the attached PDF here (Click Here)
